品牌 | 强盛 | 型号 | 3DA-8*6 | 材质 | 铸铁 |
性能 | 耐磨 | 扬程 | 67.5(m) |

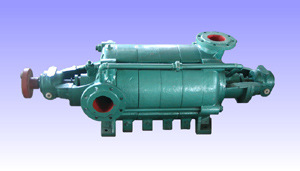

DA型分段式多级离心泵
Da型泵系单吸多级分段式离心泵,供输送清水及物理、化学性质类似水的液体之用。液体温度不超过80-C,适用于矿山排水、农田、排灌、工厂及城市给水之用。
型号意义:例如
2DA-8X5
5----------------------级数(即5个叶轮)
8--------------------------比转数被10除的整数值
DA-----------------------------------表于单吸多级分段式离心泵
2--------------------------------------------表于吸入口径被25除的整数值
表1
型号TYPE | 流量 Capacity Q (m3/h) | 扬程 Head H (m) | 速度 Speed n (r/min) | 必需汽 蚀余量 NPSHr (m) | 效率 Effici ency n (%) | 轴功率 Shaft Power (kw) | 配用电机Matingmotor | 重量 Weight (kg) | 泵外形尺寸(长x宽x髙)Overall dimensions LxWxH (mm) | 口径Dia.ofpump (tnm) | |||
功率 Power (kw) | 规格Specif | ||||||||||||
吸入 Inlet | 吐出 Outlet | ||||||||||||
2DA-8X2 | 10.818 21.6 | 20 16.6 14 | 1450 | 2.0 2.7 3.4 | 50 55 50 | 1 .18 1 .48 1 .65 | 3 | Y200L2-4 | 140 | 873X420400 | 50 | 50 | |
2DA-8X3 | 10.818 21.6 | 30 24.9 21 | 1450 | 2.0 2.7 3.4 | 50 55 50 | 1.77 2.22 2.48 | 3 | Y200L2-4 | 160 | 945X420400 | 50 | 50 | |
2DA-8X4 | 10.818 21.6 | 40 33.2 28 | 1450 | 2.0 2.7 3.4 | 50 55 50 | 2.36 2.96 3.30 | 4 | Y112M-4 | 180 | 1017X420400 | 50 | 50 | |
2DA-8X5 | 10.8 18 21.6 | 50 41.5 35 | 1450 | 2.0 2.7 3.4 | 50 55 50 | 2.95 3.70 4.13 | 5.5 | Y132S-4 | 200 | 1089X420400 | 50 | 50 | |
2DA-8X6 | 10.818 21.6 | 60 49.8 42 | 1450 | 2.0 2.7 3.4 | 50 55 50 | 3.54 4.44 4.95 | 7.5 | Y132M-4 | 220 | 1161X420400 | 50 | 50 | |
2DA-8X7 | 10.818 21.6 | 70 58.1 49 | 1450 | 2.0 2.7 3.4 | 50 55 50 | 4.13 5.18 5.77 | 7.5 | Y132M-4 | 240 | 1233X420400 | 50 | 50 | |
2DA-8X8 | 10.8 18 21.6 | 80 66.4 56 | 1450 | 2.0 2.7 3.4 | 50 55 50 | 4.72 5.92 6.60 | 11 | Y160M-4 | 260 | 1315X420400 | 50 | 50 | |
2DA-8X9 | 10.818 21.6 | 90 74.7 63 | 1450 | 2.0 2.7 3.4 | 50 55 50 | 5.31 6.66 7.42 | 11 | Y160M-4 | 280 | 1387X420400 | 50 | 50 | |
3DA-8X2 | 25.2 32.4 39.6 | 25 22.6 19 | 1450 | 2.53.0 3.6 | 61 64 60 | 2.82 3.12 3.42 | 4 | Y112M-4 | 164 | 878X470445 | 80 | 80 | |
3DA-8X3 | 25.2 32.4 39.6 | 37.533.9 28.5 | 1450 | 2.53.0 3.6 | 61 64 60 | 4.23 4.68 5.12 | 7.5 | Y132M-4 | 208 | 966X470445 | 80 | 80 | |
3DA—8X4 | 25.2 32.4 39.6 | 50 45.2 38 | 1450 | 2.53.0 3.6 | 61 64 60 | 5.63 6.24 6.83 | 11 | Y160M-4 | 252 | 1054X470445 | 80 | 80 |
