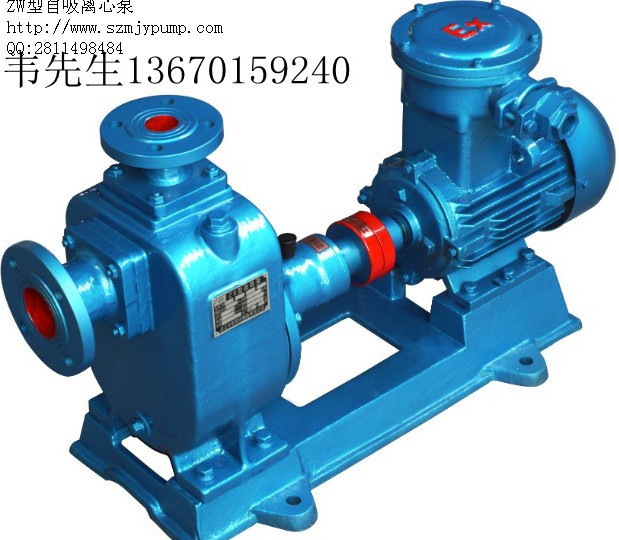

点击图片查看原图
| 品牌 | 铭俊源泵业 | 型号 | 200ZX280-65 | 材质 | 铸铁 |
| 驱动方式 | 电动 | 用途 | 排污泵 | 泵轴位置 | 卧式 |
| 叶轮结构 | 封闭式叶轮 | 叶轮数目 | 单级 | 叶轮吸入方式 | 单吸式 |
| 原理 | 离心泵 | 性能 | 不阻塞 | 扬程 | 65（m） |
| 转速 | 1450（r/m） | 功率 | 90000（w） | 流量 | 80（m3/h） |
| 规格 | 流量：3.2——280M3/H,扬程：12——80M,电机功率：0.75——90KW | 适用范围 | 主要适用于城市环保、建筑、消防、化工、制药、印染、酿造、电力、电镀、造纸、石油、矿山、设备冷却等。适 |
ZX自吸离心泵产品特点：
ZX selfsuction centrifugal pumpproduct features:
ZX型自吸泵根据国内外有关技术资料经吸收、消化、改进后研制而成的节能泵类产品。该泵属自吸式离心泵，它具有结构紧凑、操作方便、运行平稳、维护容易、效率高、寿命长，并有较强的自吸能力等优点。管路中不需安装底阀，工作前只需保证泵体内储有定量引液即可。因此简化了管路系统，又改善了劳动条件。
Energy savingpump productsZX typeself-priming pumpaccording to the domestic and foreignrelevant technical datathrough absorption,digestion,improvedand developed into.The pump is self-priming centrifugal pump,ithas the advantages of compact structure,convenient operation,stable operation,easy maintenance,high efficiency,long life,the advantagesandstrongself-priming capacityetc..Do notneed to install the valvein the pipeline,just before work to ensurethe pump bodyfluid can be stored with quantitative cited.Thus simplifying the piping system,andimprovedworking conditions.
ZX自吸离心泵产品使用条件
ZX selfsuction centrifugal pumpproductsuse conditions
ZX自吸离心泵管路中无需安装底阀，工作前只需保证泵体内储有定量的引水即可，根据客户使用介质有铸铁材质和304，316L材质，介质温度-20℃-120℃，流量：3.2-600m3/h 扬程：10-80m转速1450-2900r/min
ZX self-primingcentrifugal pumpwithout theneed to install the valvein the pipeline,only to ensurewaterbefore workcan bestoring up inside the pumphave quantitative,according to thecustomers to use themedium withcast iron materialand304316L material,mediumtemperature of -20DEG -120 DEG,flow: 3.2-600m3/hhead: 10-80mspeed 1450-2900r/min
ZX自吸离心泵产品用途
ZX selfsuction centrifugal pumpproduct use
ZX自吸离心泵主要适用于城市环保、建筑、消防、化工、制药、印染、酿造、电力、电镀、造纸、石油、矿山、设备冷却等。适用于清水、海水及带有酸、碱度的化工介质液体和带有一般糊状的浆料，介质粘度100厘珀，含固量可达30％以下。
ZXself-priming centrifugalpump is mainlysuitable for urban environmental protection,construction,fire control,chemical,pharmaceutical,printing and dyeing,brewing,electric power,papermaking,electroplating,petroleum,mining,equipment cooling.Application ofliquid chemical mediain water,seawater and with acid,alkalinityand general mushy slurry,viscosity of the mediumof 100 per cent per annumPerot,solid contentof up to 30%of the following.
ZX自吸离心泵产品规格参数：
型号 | 进口 （mm） | 出口 （mm） | 吸程 （m） | 电机 （KW） | 流量 （m3/h） | 扬程 （m） |
| 25ZX3.2-20 | 25 | 25 | 6.5 | 0.75 | 3.2 | 20 |
| 25ZX3.2-32 | 25 | 25 | 6.5 | 1.1 | 3.2 | 32 |
| 40ZX6.3-20 | 40 | 32 | 6.5 | 1.1 | 6.3 | 20 |
| 40ZX10-40 | 40 | 40 | 6.5 | 4 | 10 | 40 |
| 50ZX15-12 | 50 | 50 | 6.5 | 1.5 | 15 | 12 |
| 50ZX18-20 | 50 | 50 | 6.5 | 2.2 | 18 | 20 |
| 50ZX20-30 | 50 | 50 | 6.5 | 4 | 20 | 30 |
| 50ZX10-40 | 50 | 50 | 6.5 | 4 | 10 | 40 |
| 50ZX12.5-50 | 50 | 50 | 6.5 | 5.5 | 12.5 | 50 |
| 50ZX15-60 | 50 | 50 | 6.5 | 7.5 | 15 | 60 |
| 65ZX30-15 | 65 | 50 | 6.5 | 3 | 30 | 15 |
| 65ZX25-32 | 65 | 50 | 6 | 5.5 | 25 | 32 |
| 80ZX35-13 | 80 | 65 | 6 | 2.2 | 35 | 13 |
| 80ZX40-22 | 80 | 65 | 6 | 5.5 | 40 | 22 |
| 80ZX50-32 | 80 | 80 | 6 | 7.5 | 50 | 32 |
| 80ZX60-55 | 80 | 80 | 6 | 15 | 60 | 55 |
| 80ZX60-70 | 80 | 80 | 6 | 22 | 60 | 70 |
| 100ZX100-20 | 100 | 80 | 6 | 11 | 100 | 20 |
| 100ZX100-40 | 100 | 100 | 6 | 18.5 | 100 | 40 |
| 100ZX100-65 | 100 | 100 | 6 | 30 | 100 | 65 |
| 100ZX70-80 | 100 | 100 | 6 | 30 | 70 | 80 |
| 150ZX160-55 | 150 | 100 | 5 | 45 | 160 | 55 |
| 150ZX150-80 | 150 | 100 | 5 | 55 | 150 | 80 |
| 200ZX280-65 | 200 | 150 | 5 | 90 | 280 | 65 |
